The MPIP typically is connected directly to the spacecraft sub-system via the harness and is used to test and/or simulate various electrical and data interfaces of the flight sub-systems e.g. On-Board Computers (OBC), Power Conditioning units (PCDU), Instrument Control Units (ICU) and any other payload or platform elements.
Multi-Purpose Interface Platform
The Multi-Purpose Interface Platform (MPIP) is a modular, scalable electrical ground support equipment (EGSE) that enables space equipment builders and integrators to test and simulate spacecraft electrical and data interfaces in a fast, flexible and cost-efficient manner.
Key Features
- 3U 19″ rack mountable or tabletop chassis (up/down scaled versions available in 4U and 2U)
- Supports up to 16 interface modules of any type and combination
- Fully equipped unit supports more than 400x channels
- Discrete, TM/TC, Power and Digital Data Interfaces (≤800Mbps)
- 2x Gigabit Ethernet ports for Control and Data via TCP/IP (RJ45)
- PPS/Trigger output for synchronization of external equipment
- 2x External Time inputs, such as PPS and IRIG
- 19+ Different pluggable module types available
- Up to two (2) different bus voltage inputs for LCL and Heater interfaces (up to 105V)
- All interfaces towards unit under test (UUT) are galvanically isolated
- FMEA Report available for all interface modules
- Fully compliant interfaces with ESA/ECSS standards
Equipment Details

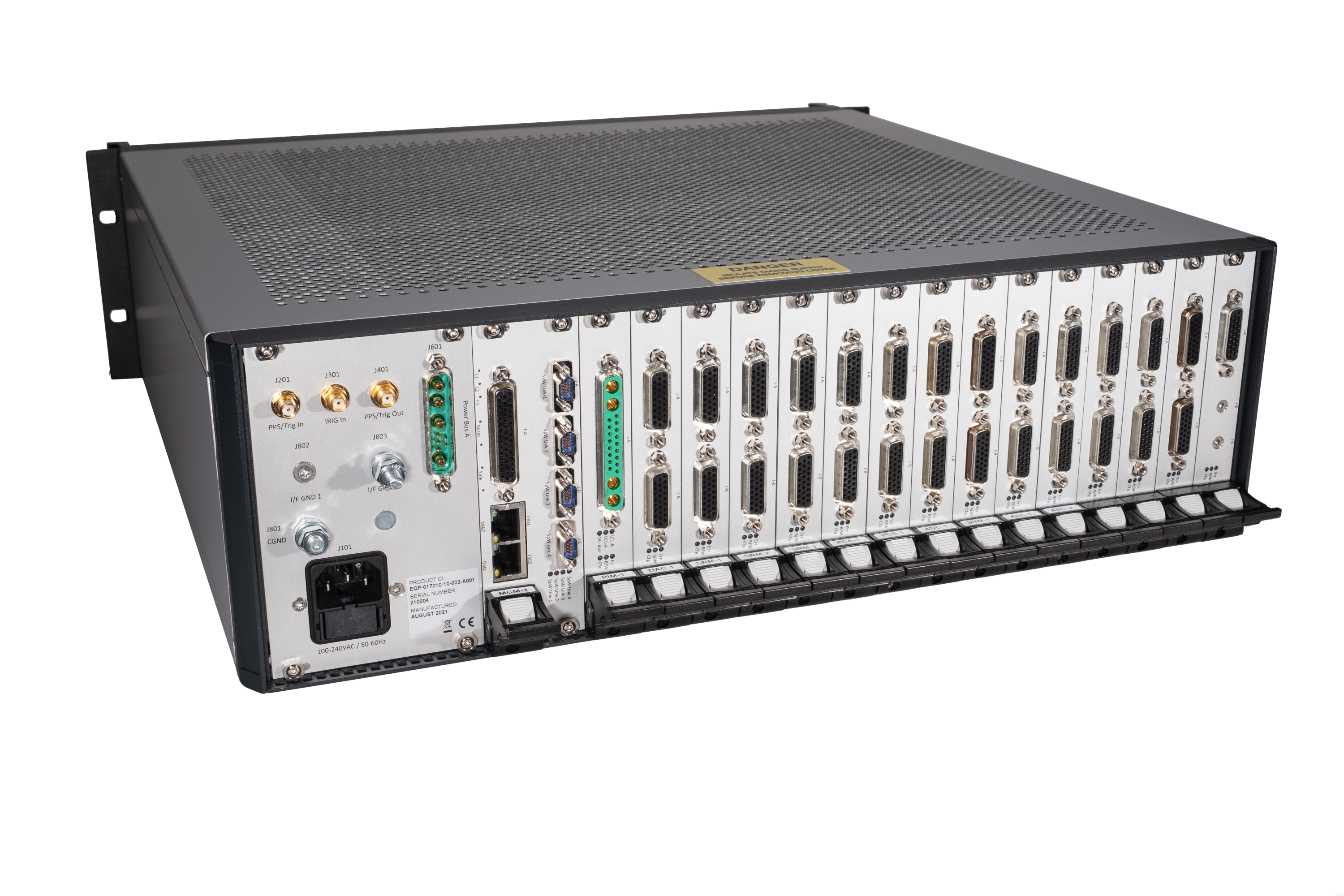

The MPIP product is a rack-mount or tabletop 19″ unit which supports up to 16 interface modules fitted in the backplane. Each module represents dedicated electrical interface types (power, discrete, TM/TC, etc.) and is designed in a 3U Eurocard size form factor. Each MPIP mainframe is equipped with controller module (MCM) which is the control and status gateway between the MPIP interface modules and the operator (i.e. GUI running on a User Workstation). In addition, MCM module includes isolated interface circuitry for medium data rate applications (up to 800Mbps). Hence the MCM can also act as an interface module providing for example, standard and custom RS422/RS485/LVDS interfaces as well as SpaceWire, SERDES and Parallel/Serial LVDS.
Modularity of MPIP allows to combine a large variety of different interface types into a single platform and scale it up or down. A fully populated MPIP unit can provide over 400 ECSS compliant electrical interfaces. For small systems, the interface modules can be mounted horizontally in such case providing a total of up to 6 slots within a 2U height.
MPIP Controller Module (incl. 4 x SpaceWire Interfaces)
The MPIP Controller Module can be expanded with up to two (2) extension boards. These provide various interface types, such a SpaceWire, SERDES and Parallel LVDS and custom implemented. Science data as transmitted or received via the interfaces are exchanged with the back-end via a dedicated 1Gbit ethernet port using in hardware implemented TCP/IP.
Information, specs & downloads
Download MPIP Brochure:
MPIP Product video
Available modules
The following MPIP modules are available:
| Module | Function/Protocol |
|---|---|
| Latching Current Limiter (LCL) | Latching Current Limiter |
| Heater Latching Current Limiter (HLCL) | Heater Latching Current Limiter |
| Analogue Signal Monitor (Simulation) | Digital to Analogue Converter |
| Analogue Signal Monitor (Acquisition) | Analogue to Digital Converter |
| Temperature Sensor Monitor (Simulation) | Digital Rheostat |
| Temperature Sensor Monitor (Acquisition) | Analog to Digital Converter |
| Bi-Level Discrete Monitor (Simulation) | Digital to Analogue Converter |
| Bi-Level Discrete Monitor (Acquisition) | Analogue to Digital Converter |
| Bi-Level Switch Monitor (Simulation) | Relay/Switch |
| Bi-Level Switch Monitor (Acquisition) | Analogue to Digital Converter |
| High-Power Command (Simulation) | Low-, High-voltage and High-Current |
| High-Power Command (Acquisition) | Low-, High-voltage and High-Current |
| Low-Power Command (Simulation) | Low Power Pulsed or Bi-Level |
| Low-Power Command (Acquisition) | Low Power Pulsed or Bi-Level (opto) |
| Serial Digital Interfaces (Bi-directional) | RS-422, RS485 or LVDS |
| Spacewire Interfaces (Bi-directional) | Spacewire(LVDS) |
| Parallel LVDS Interfaces (Bi-directional) | Parallel LVDS |
| Serialiser/Deserialiser Interfaces (SERDES) | LVDS217/LVDS218 |
See the MPIP brochure for more information.
