About TT&C Processor


The TT&C Processor (TTCP) is an advanced Telemetry Tracking and Command Processor. Developed for ESA with BAE Systems (UK), C-STS (Netherlands), Zelinda (Ireland), SciSys (Germany) and ATOS (Austria).

This TT&C Processor has been specifically designed for high-performance Deep Space satellite communications. The Digital Signal Processing, error correction techniques, data processing, and overall control and status mean that the system supports recover of extremely low SNR signals, highly accurate radiometric processing and the latest ESA coding and modulation techniques. The architecture is highly modular and designed to evolve as new techniques and schemes develop.

The TT&C Processor is used for deep space spacecraft tracking with delta DOR and includes a Digital Tracking Receiver for antenna AutoTrack.

TTCP_2 white background
TTCP_back white background1
TTCP_3 white background
TTCP white background_scaled

Click image to enlarge

Key Features


  • 2 to 5 IF inputs (56MHz – 1.85GHz)
  • 2 IF outputs (typically 230MHz but with wideband test outputs for closed loop testing)
  • Suppressed carrier schemes—BPSK, QPSK, OQPSK, GMSK
  • Remnant carrier schemes— SPL/PM, BPSK/PM (sine/square)
  • ESA Standard, ESA Tone and PN Ranging (T2B, T4B)
  • Ranging and Doppler measurements including DDOR
  • Uplink and downlink generation and acquisition
  • External Time/Reference inputs, such as 5MHz, 10MHz, 100 MHz and PPS (IRIG-B/G optional)
  • Support for simultaneous multiple spacecraft on a single RF feed
  • The Switch Matrix supports a selection of 1 of 3 signals for each RF input allowing connection to different down-converters or antennas

Key Features


  • 2 to 5 IF inputs (56MHz – 1.85GHz)
  • 2 IF outputs (typically 230MHz but with wideband test outputs for closed loop testing)
  • Suppressed carrier schemes—BPSK, QPSK, OQPSK, GMSK
  • Remnant carrier schemes— SPL/PM, BPSK/PM (sine/square)
  • ESA Standard, ESA Tone and PN Ranging (T2B, T4B)
  • Ranging and Doppler measurements including DDOR
  • Uplink and downlink generation and acquisition
  • External Time/Reference inputs, such as 5MHz, 10MHz, 100 MHz and PPS (IRIG-B/G optional)
  • Support for simultaneous multiple spacecraft on a single RF feed
  • The Switch Matrix supports a selection of 1 of 3 signals for each RF input allowing connection to different down-converters or antennas

The system consists of a number of units:

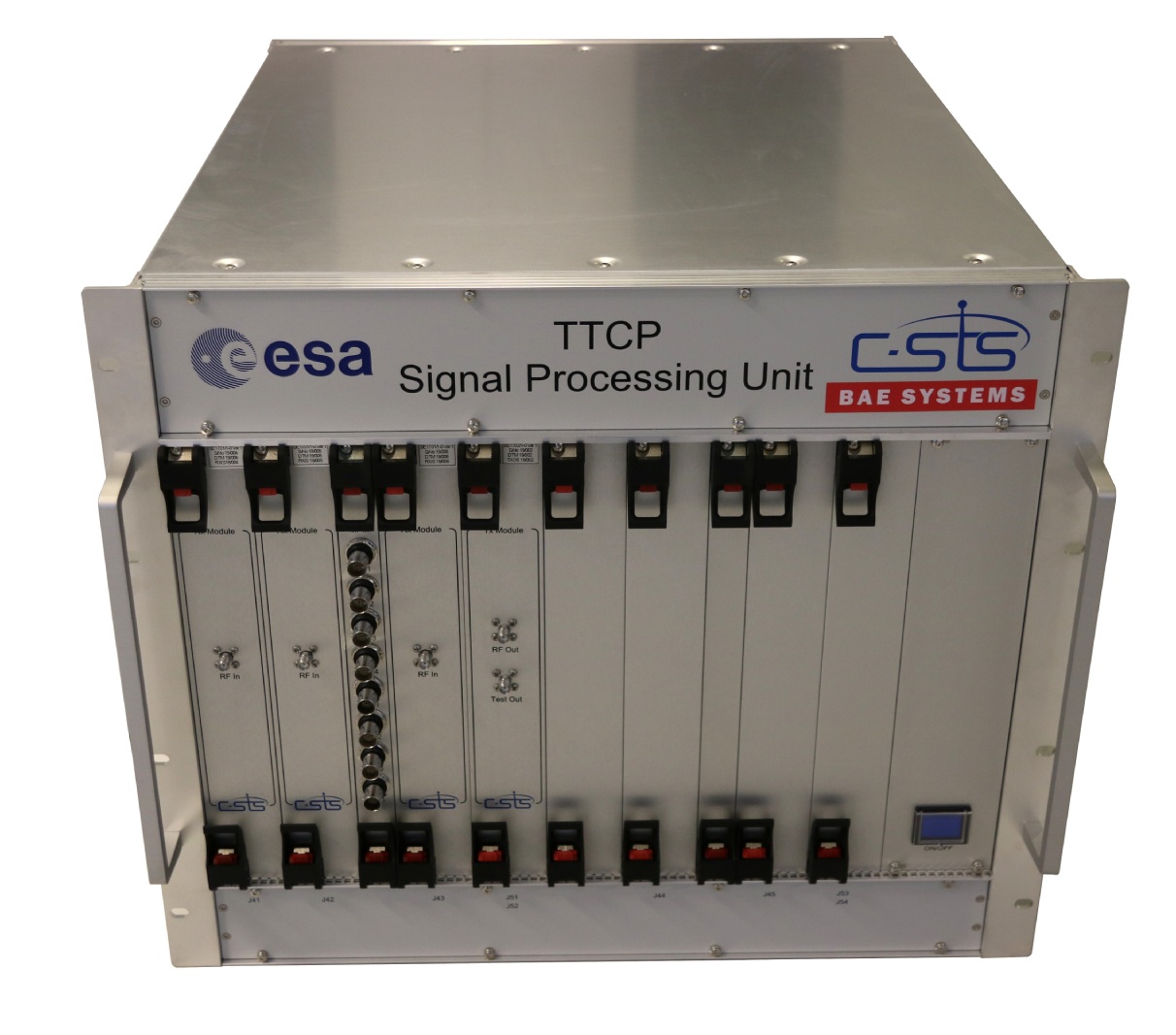

  • Signal Processing Unit (19″ 9U)

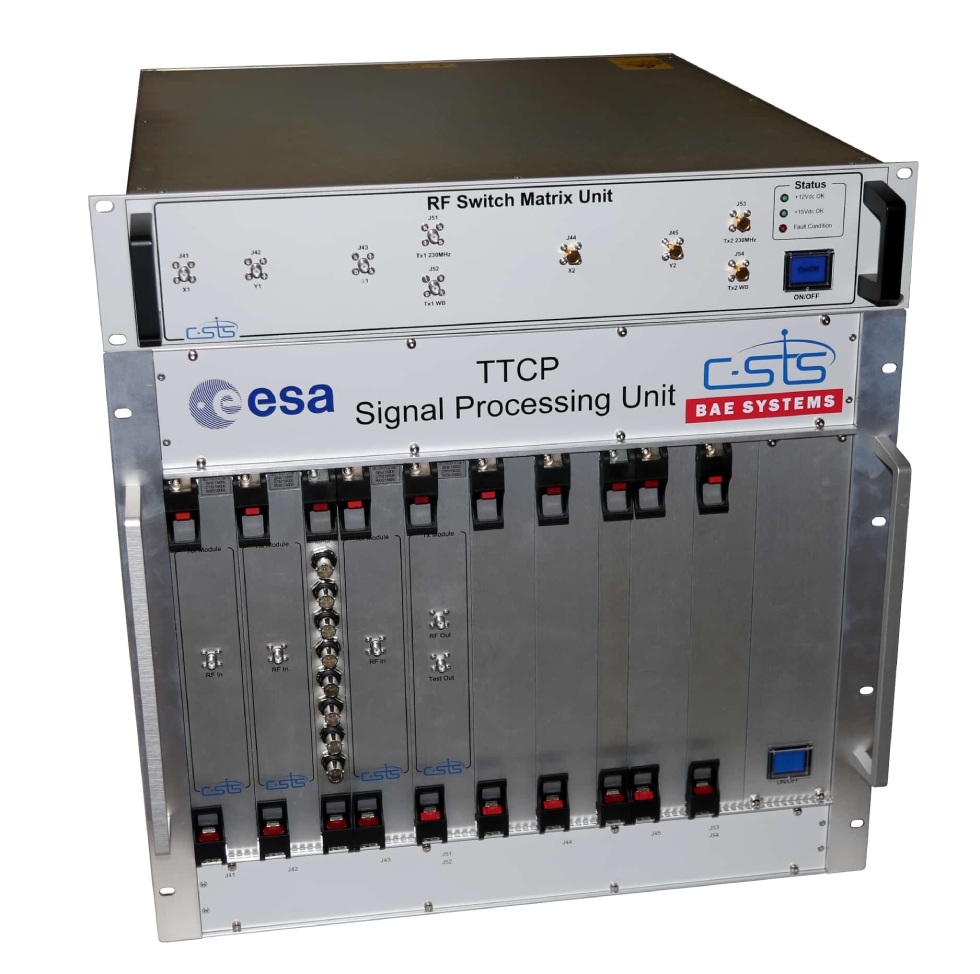

  • Switch Matrix Unit (19″ 2U)
  • Data Processing Unit – PC Platform typically (19″ 3U)

Telemetry, Tracking and Command Processors systems are deployed in all of ESA’s Deep Space Network ground stations and the units are also being prepared for commercial ground station deployments.
