Supported Interfaces Type(s)
Purpose
Direction
SpaceWire (LVDS)
Transportation of TM/TC or Science Data via SpW Protocol
Input & Output

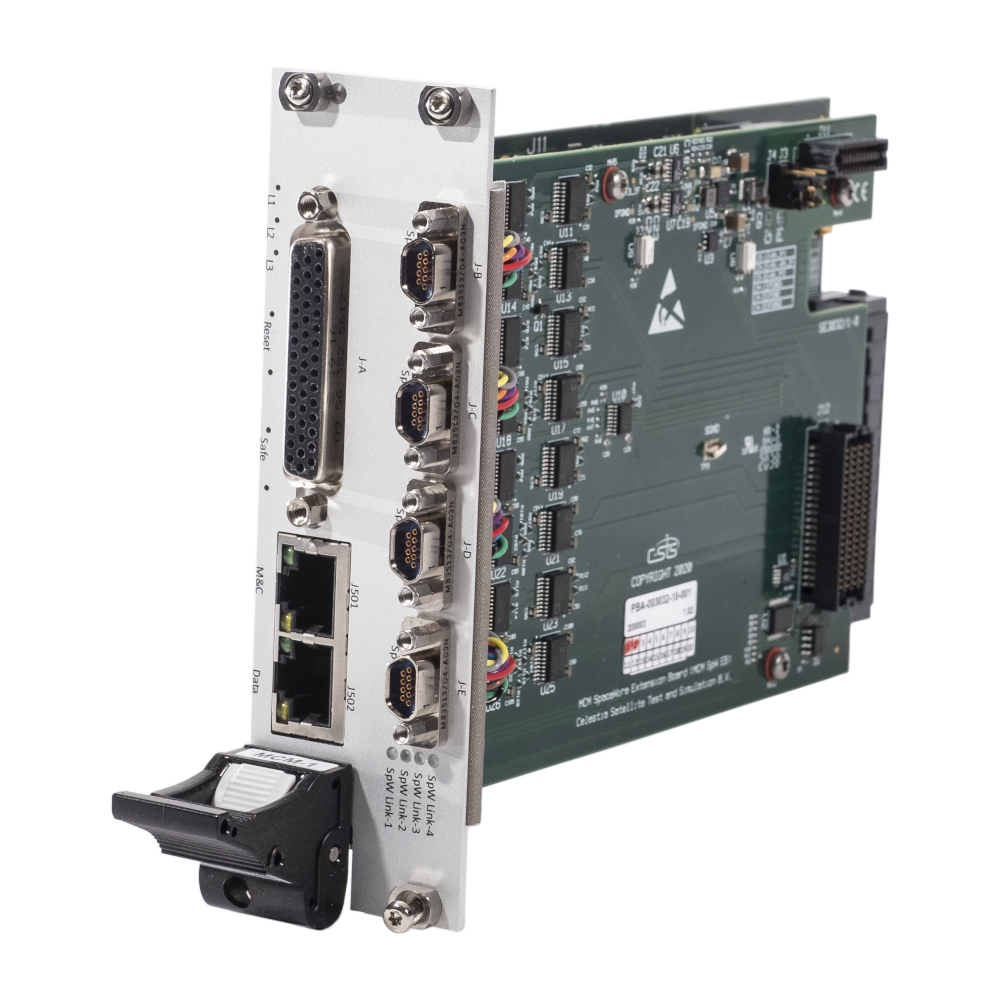

MPIP SpaceWire Extension Plug-on board (SpW)
- Interface Type Support:
Up to 8 SpaceWire Interfaces
Micro D Sub (MDM-9S) connector for each SpW Interface
Galvanically isolated LVDS interfaces - Specifications:
Link Rate: Up to 200Mbps
Fail Safe: Logic ‘1’ when open
EGSE functions: Time stamped Rx packets Time released Tx packets
Error Injection/Detection: Parity, Timeout, EOP, EEP, etc.
Time Packet Support: External TICK-In and TICK-Out
Self-Test Functions: PRBS Generator and BER Checker - Compliant to ECSS-E-ST-50-12C
- FMEA Report available
