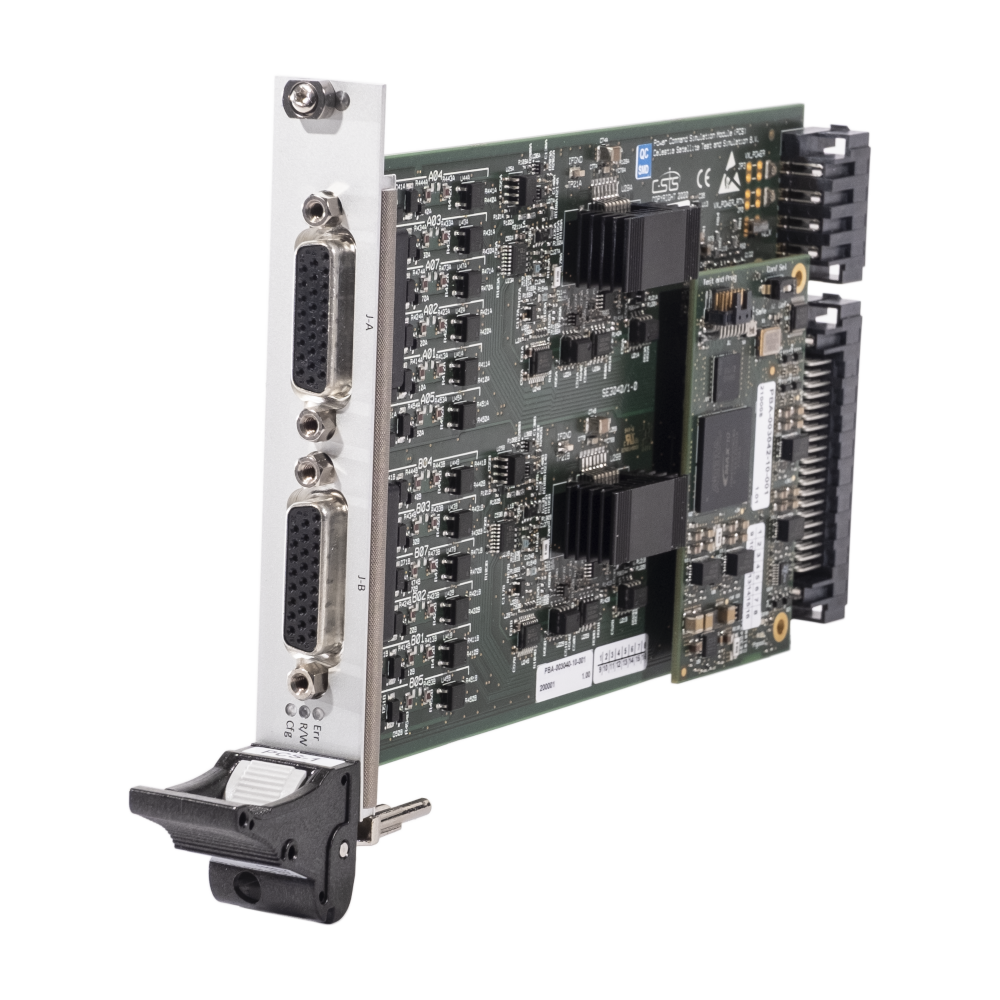

MPIP Power Command Simulator Module (PCS)

Supported Interfaces Type(s)
Purpose
Direction
High-Power Command (HPC) Simulation
High-Voltage Pulse generation to switch relays (load driving)
Output
  • Interface Type Support:
    Low-Voltage High Power Pulse Cmd (LV-HPC) Source
    High-Voltage High Power Pulse Cmd (HV-HPC) Source
    High-Current High Power Pulse Cmd (HC-HPC) Source
    Up to 24 output on two (2) DA-26S connectors
  • HPC Specifications:
    Active output voltage level (LV-HPC): +12V to +16V
    Active output voltage level (HV/HC-HPC): +22V to +29V
    Current drive capability (LV/HV-HPC): 180mA
    Current drive capability (HC-HPC): 600mA
    Pulse Duration: 4ms to 1023ms
    Pulse Programming Resolution: 1ms
    Output voltage rise/fall times: 50us to 2ms
  • Under/Over-voltage protection (UVP / OVP)
  • Compliant with ECSS-E-ST-50-14C
  • FMEA Report available
