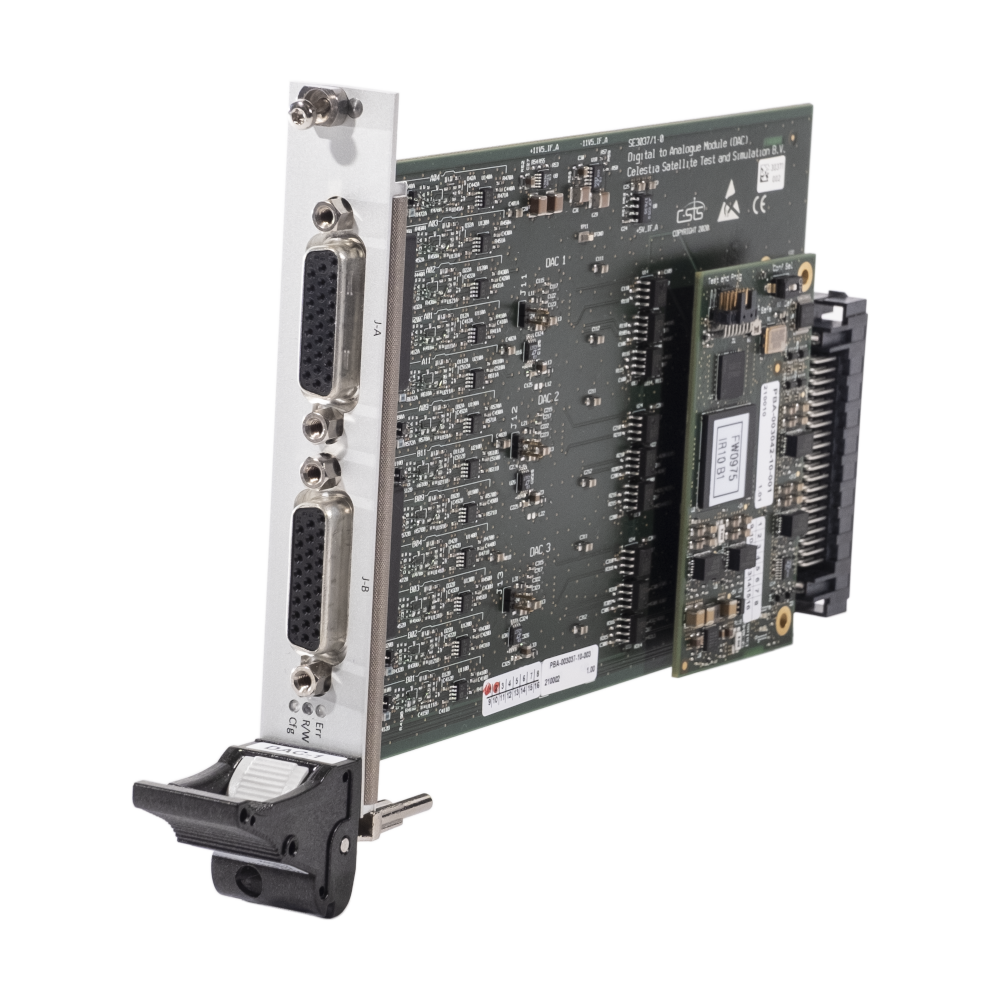

MPIP Digital to Analog Module (DAC)

Supported Interfaces Type(s)
Purpose
Direction
Analogue Signal Monitor (ASM) Simulation
Analogue voltage (0 to +5V) simulation representing a value
Output
Bi-Level Discrete Monitor (BDM) Simulation
Static state simulation (‘0’ or ‘1’) by analogue voltage level
Output
  • Interface Type Support:
    Analogue Signal Monitor (ASM) Source
    Bi-Level Discrete Monitor (BDM) Source
    Up to 24 outputs on two (2) DA-26S connectors
  • ASM Specifications:
    Output impedance: ≤ 5kΩ
    Output Voltage: 0V to +5V
    Channel Resolution: 16-bit
    Accuracy: ≤ ±4 LSBs
    Compliant with ECSS-E-ST-50-14C
  • BDM Specifications:
    Output impedance: ≤ 5kΩ
    Output voltage low (Logic ‘0’): 0V to +0.5V
    Output voltage high (Logic ‘1’): +2.4V to +5.0V
    Compliant with ECSS-E-ST-50-14C
  • FMEA Report available
MPIP Digital To Analog Converter (DAC) Celestia STS C-STS
